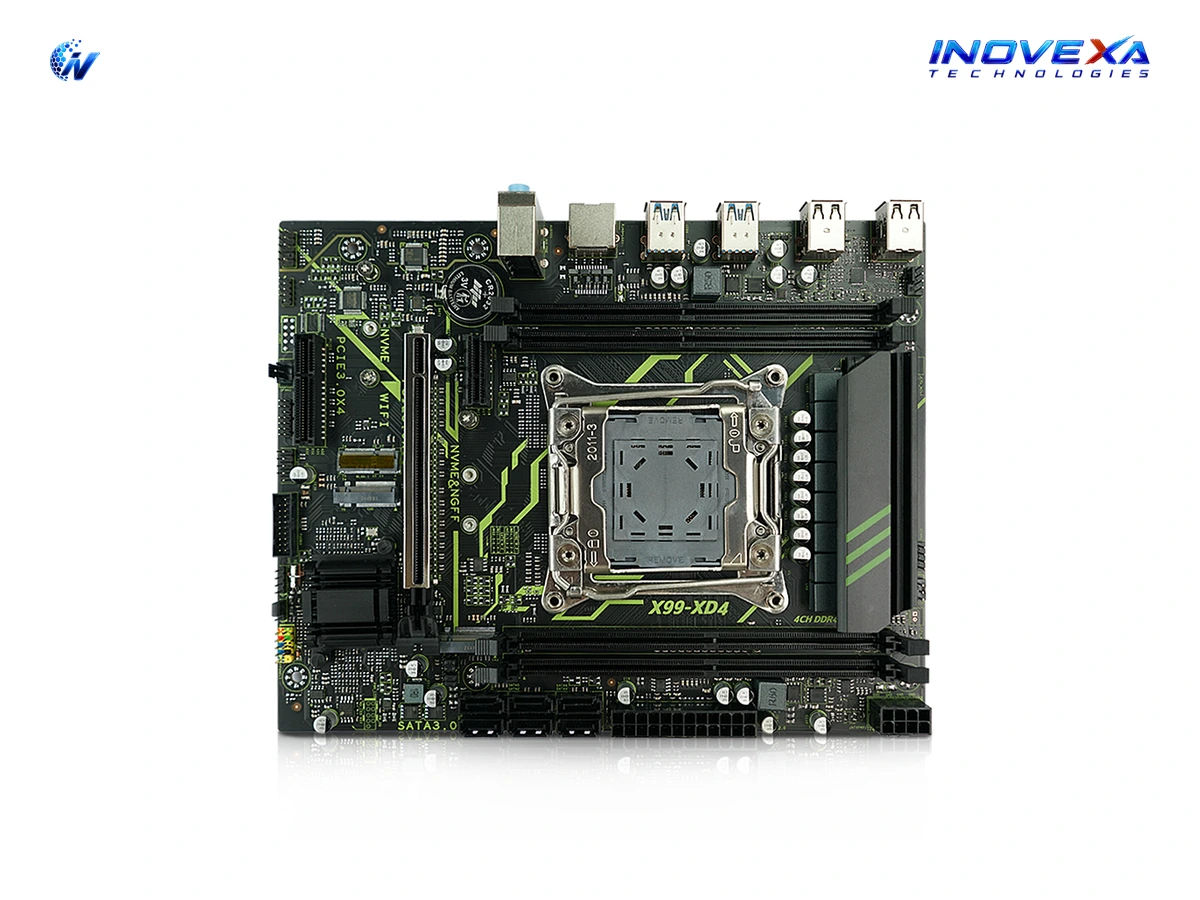

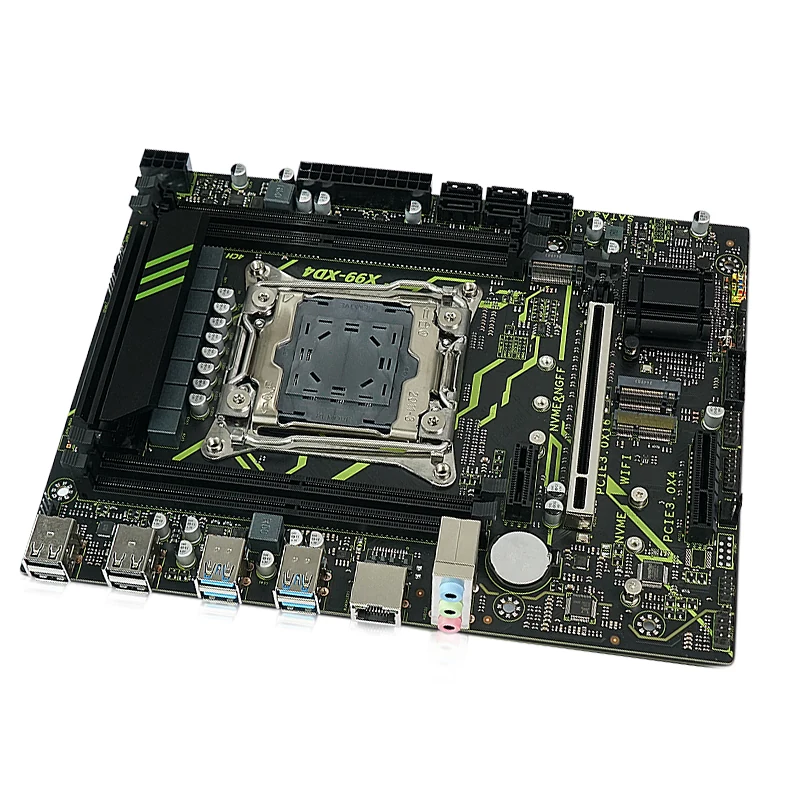

X99-XD4 Intel LGA 2011-V3 Micro-ATX Server Motherboard

X99-XD4 Intel LGA 2011-V3 Micro-ATX Server Motherboard

Looking for a compact, high-efficiency LGA2011-3 server motherboard with active VRM cooling and versatile storage options? The X99-XD4 Micro-ATX Server Motherboard delivers Intel Xeon E5 V3/V4 processor support, four-channel DDR4 ECC and Non-ECC memory compatibility, an integrated active MOS heatsink cooling fan, dual M.2 high-speed slots (NVMe PCIe / SATA), 6 × SATA 3.0 ports, 8 × rear USB ports, and Gigabit LAN with PXE and Wake-on-LAN (WOL) capabilities across Bangladesh. Engineered specifically for high-density 2U/3U/4U rackmount servers, custom PC MikroTik RouterOS x86 network appliances, NAS storage boxes, and compact multi-core rendering workstations without the expense of proprietary server boards.

Enterprise Performance and Architectural Overview

The X99-XD4 is an engineered Micro-ATX server motherboard built on the Intel LGA2011-3 socket architecture. Designed to maximize compute density in space-constrained rackmount chassis and compact desktop enclosures, it features an active MOS heatsink fan that directly cools the multi-phase VRM circuitry under continuous heavy loads. Supporting high-core-count Intel Xeon E5 V3/V4 processors, up to 128GB of quad-channel DDR4 ECC server memory, dual M.2 storage slots (NVMe PCIe 3.0 x4 and SATA NGFF), 6 SATA 3.0 6Gbps sockets, and PCIe expansion for 10G/25G SFP+ network cards or GPUs, the X99-XD4 provides unparalleled reliability and high-speed throughput for enterprise networking and computing deployments in Bangladesh.

Advanced Technical Standards and Multi-Gigabit Support

• Intel LGA2011-3 & Xeon E5 V3/V4 Support: Compatible with multi-core Intel Xeon E5 V3 and V4 series processors for virtualization, routing, rendering, and server compute workloads.

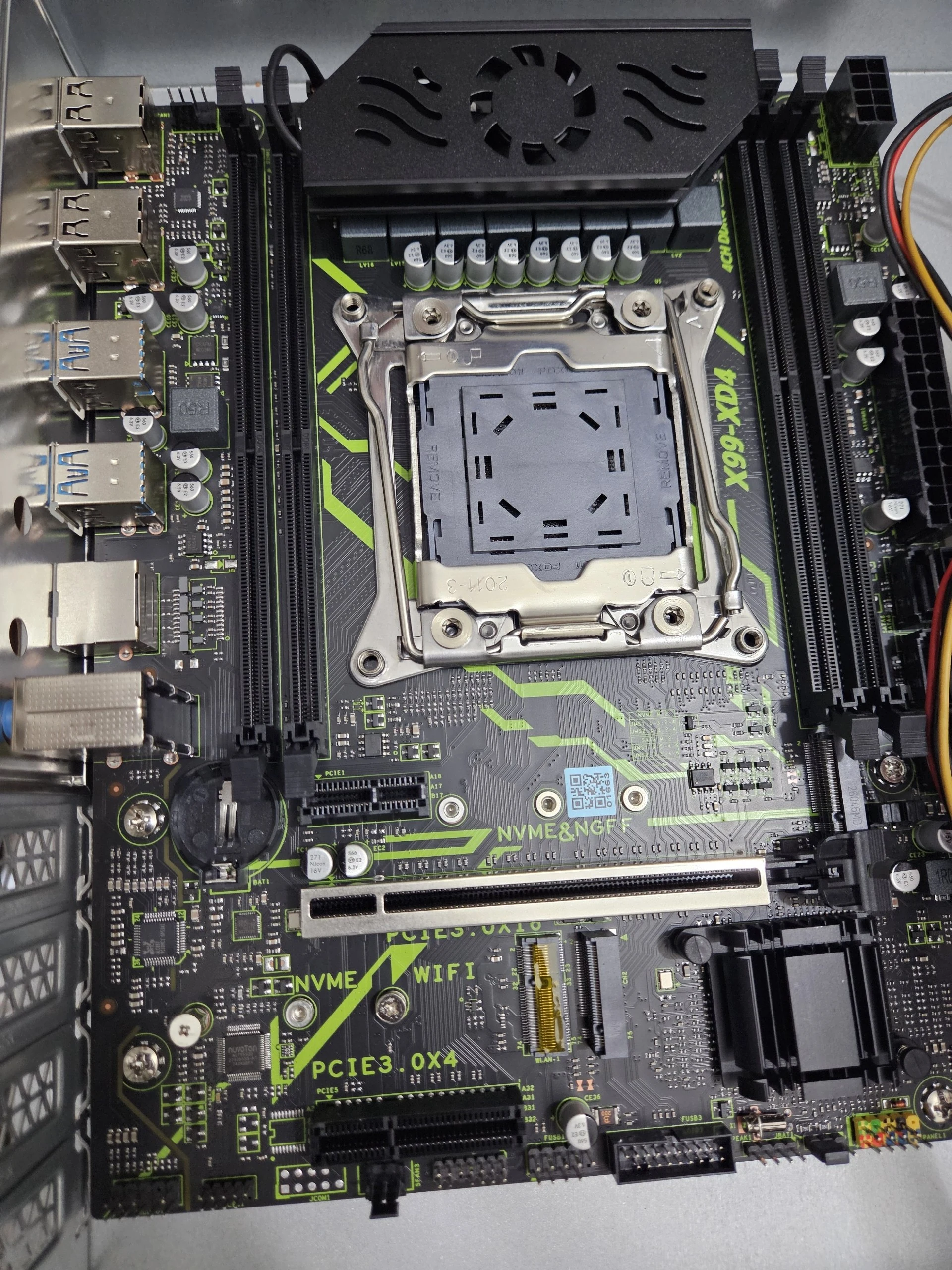

• Active MOS Heatsink Cooling Fan: Integrated active cooling fan over the VRM MOS heatsink ensures low operating temperatures and rock-solid 24/7 continuous stability.
• Four-Channel DDR4 ECC & Non-ECC Memory (Up to 128GB): Features 4 DDR4 DIMM slots supporting DDR4 1866/2133/2400MHz ECC Server RDIMM and Non-ECC memory in high-bandwidth quad-channel mode.
• Dual M.2 Storage Slots (NVMe PCIe & SATA): Includes 2 onboard M.2 slots (M.2 2280 NVMe PCIe 3.0 x4 up to 32Gbps + M.2 SATA/NVMe) for ultra-fast boot and dedicated caching.
• 6 × SATA 3.0 6Gbps Storage Sockets: Equipped with 6 high-speed SATA3.0 ports supporting multi-drive HDD and SSD arrays for NAS, storage servers, and backups.
• Gigabit LAN with PXE Boot & Wake-on-LAN (WOL): Realtek Gigabit Ethernet controller supporting remote network booting (PXE) and network wake-up for remote management.

Reliability and Long-Term Performance in Bangladesh

Electronic components and network equipment in our region need to be durable to handle varying environmental conditions. Every enterprise unit supplied by INOVEXA Technologies is tested under intensive operational benchmarks to guarantee 24/7 continuous operation, optimized thermal airflow, and long lifespan.

Secure Your High-Performance Hardware at INOVEXA

Do not let hardware bottlenecks hold back your business network or workstation. We maintain ready stock of genuine enterprise hardware backed by fast nationwide delivery across Bangladesh, replacement warranty, and dedicated engineering support.
